Please upload a CAD file.

1. Upload only one floor plan in the CAD file.

  • Elevation, ceiling, section views X
  • Multiple floor plans X

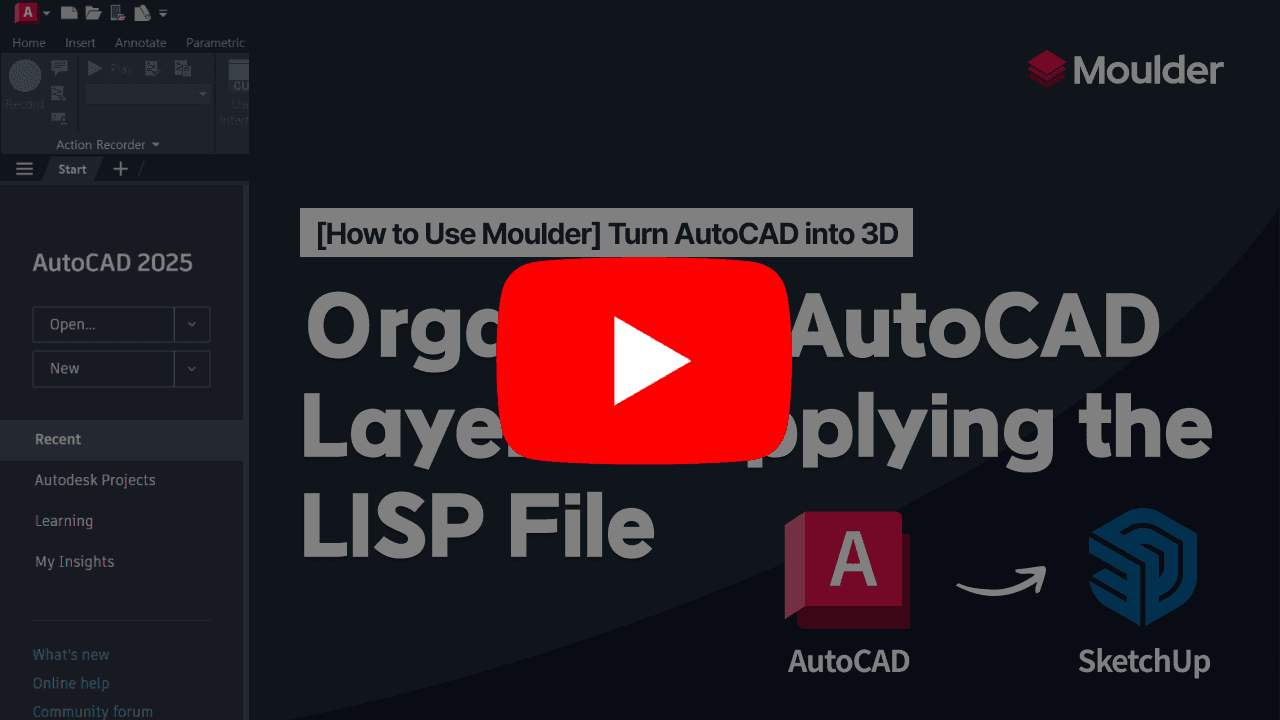

2. Check the layers for walls, doors, and windows in the CAD file.

  • After checking the layers, please upload the file below.
  • After uploading, selection dialogs will appear for each element type. Choose the appropriate layers for walls, doors, and windows in each dialog.

3. Block all furniture in the CAD file.

  • Block all furniture you want to be automatically recognized.

Use example CAD files

Apartment(85m2).dwg
Cafe(137m2).dwg
Office(736m2).dwg
